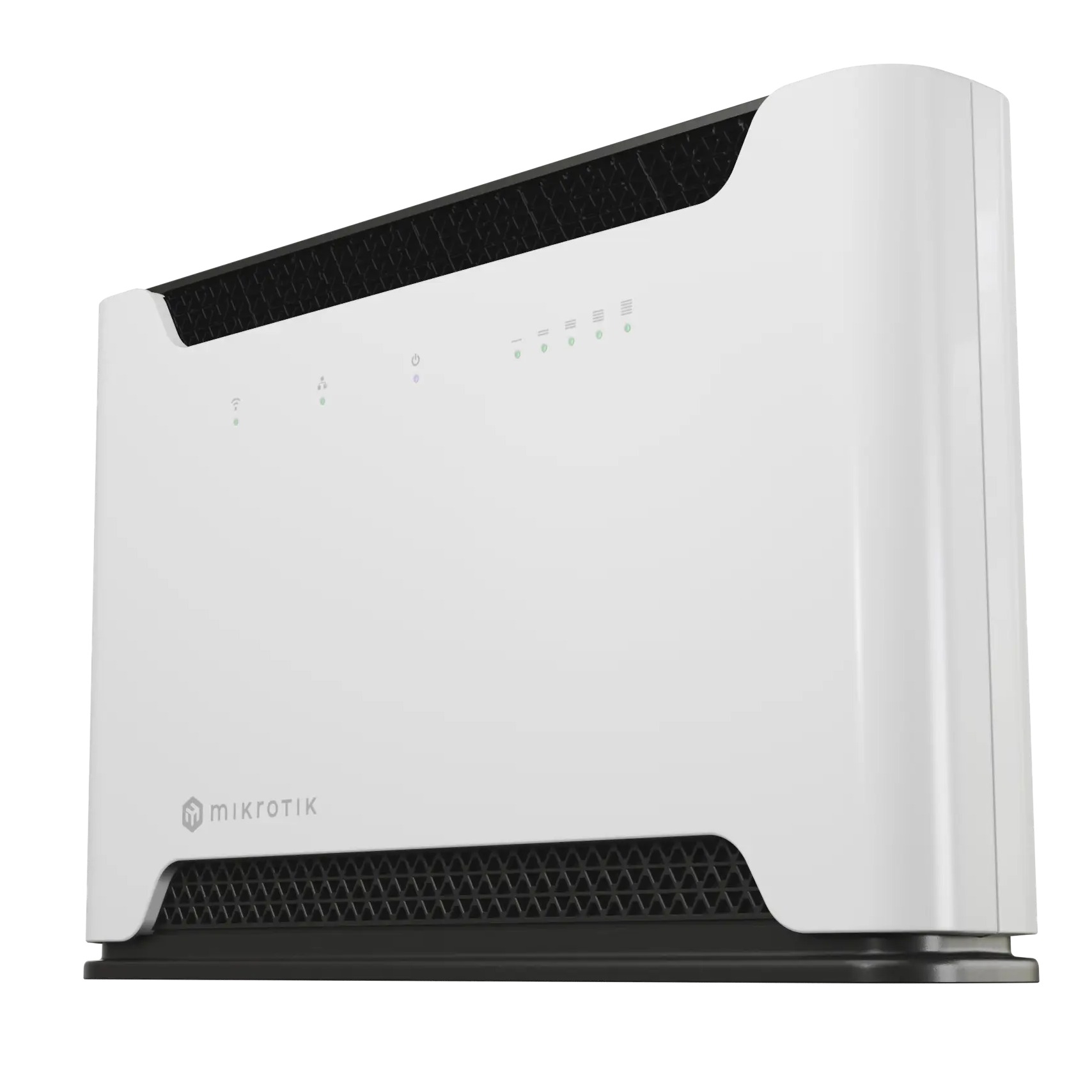

ROUTER MIKROTIK Chateau LTE12 D53G-5HacD2HnD-TC&EG120K-EA

Šifra: 21051220 PN: D53G-5HacD2HnD-TC&EG120K-EA Vrijeme dostave: 1 dan(a)

Ilidža

M. Dvor

445.00 KM

Cijena bez popusta: 478.49 KM

Chateau LTE12 (2025)
Your best friend when it comes to mobile networks. Amazing in the hands of seasoned system administrators. Or in a household with zero IT skills. Or anything in between. Chateau can do it all. New modem by Quectel: added 4x4 MIMO for more bands: 1 / 3 / 7 / 38 / 40 / 41. 5x Gigabit Ethernet ports, 600 Mbps Cat12 LTE.

Troškovi dostave

10 KM za sve destinacije u BiH

Obavještavamo vas da uprkos našim najboljim namjerama ne možemo garantovati da objavljene informacije i slike ne sadrže nedostatke i greške koje ne mogu biti pravna osnovica za tužbu.

Specifikacija

Opcija	Vrijednost
Proizvođač	Mikrotik
Garancija	12 mjeseci
Broj portova (LAN)	-
USB	-

Opis

Specifications

Details
Product code	D53G-5HacD2HnD-TC&EG120K-EA
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	448-896 (auto) MHz
Switch chip model	IPQ-4019
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	32 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 70°C

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	24 W
Max power consumption without attachments	18 W
Cooling type	Passive

Mobile

Details
3G Category	R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	12 (600Mbps Downlink, 150Mbps Uplink)
MIMO DL	4x4
MIMO UL	1x1
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands	40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz)
TAC	86642205

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	IPQ-4019
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	4
Wireless 5 GHz chip model	IPQ-4019
Wireless 5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports	5

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Number of M.2 slots	1

Other

Details
Mode button	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	25	-100
11MBit/s	25	-94
6MBit/s	26	-95
54MBit/s	23	-78
MCS0	26	-96
MCS7	22	-73

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	26	-96
54MBit/s	22	-80
MCS0	26	-96
MCS7	21	-75
MCS9	19	-70

Included parts
